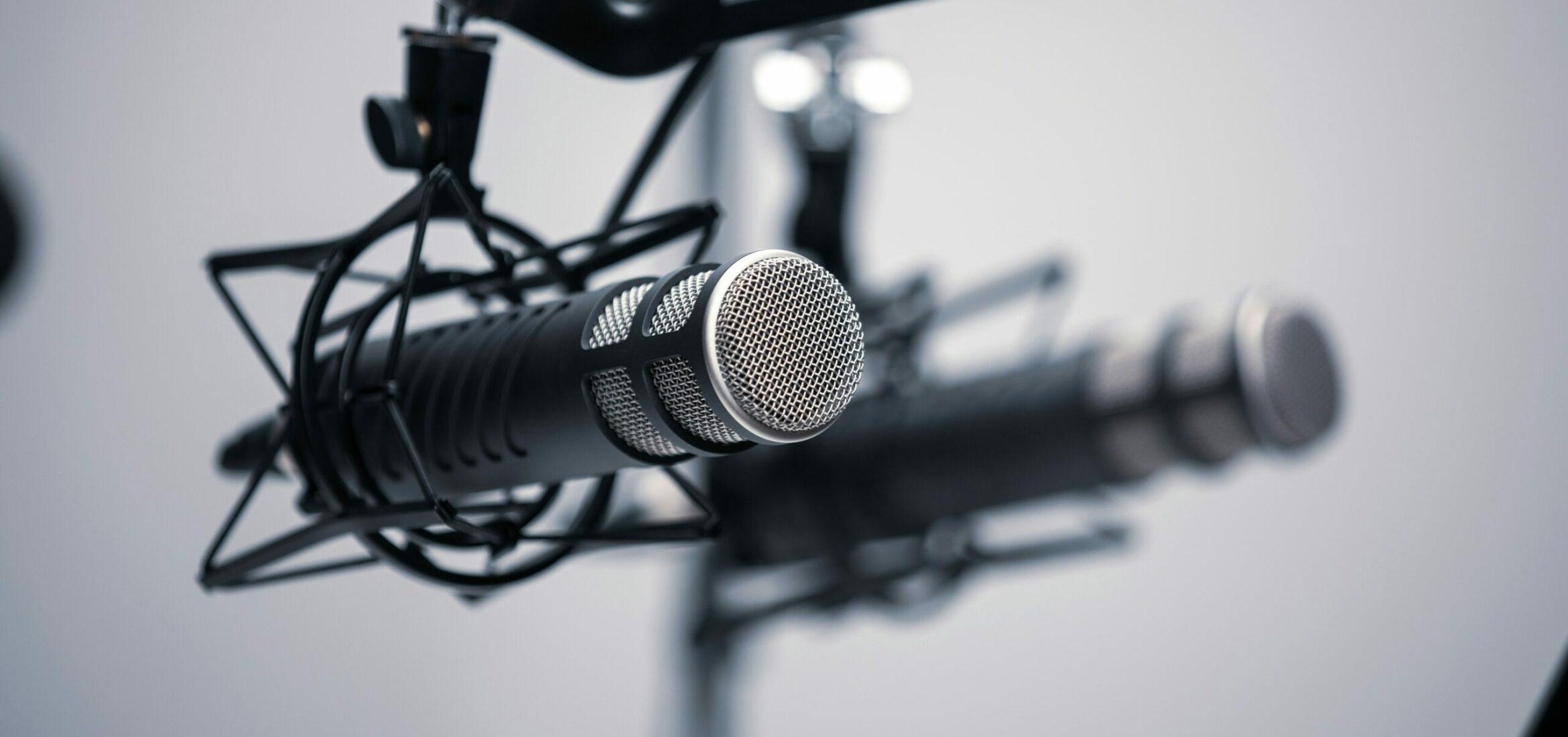

Fixing Phase Cancellation Issues in Audio Recording

Phase cancellation is a fundamental concept in audio production. When multiple sound waves interact, their overlapping peaks and troughs can reduce, weaken, or completely eliminate certain frequencies. This can occur when using multiple microphones, blending recorded tracks, or mixing stereo signals. By understanding the mechanics of phase cancellation, audio professionals can make informed choices during recording and mixing, preserving clarity, balance, and overall fidelity.

Understanding Audio Phase

Audio phase describes a sound wave’s position in its cycle at a specific moment. Measured in degrees, a full 360-degree cycle represents one complete waveform. Aligning phases between different signals is critical—misalignment can cause frequencies to reinforce or negate one another. Mastering phase relationships empowers engineers to shape the tonal character, depth, and cohesion of their mixes.

What is Phase Cancellation?

Phase cancellation refers to the phenomenon that occurs when two sound waves of the same frequency interact in a way that their peaks and troughs align oppositely, resulting in a reduction or complete cancellation of sound. This can happen in various scenarios, such as when the same sound source is captured by multiple microphones at different distances or angles. The underlying principle of phase cancellation is rooted in the concept of wave interference, where waves can constructively or destructively interfere with one another based on their phase relationships. When waves are perfectly out of phase, they cancel each other out, leading to a noticeable drop in volume or even silence in certain frequency ranges.

Why should we care about Phase Cancellation?

Phase cancellation is usually an unwanted reduction in amplitude of a sound caused by wave interference. This interaction can lead to significant alterations in the audio signal, affecting how the sound is perceived by listeners. In audio recording, phase cancellation is a critical issue that can result in a muddy mix, loss of clarity, and diminished overall sound quality. It is crucial for sound engineers to recognize and address phase cancellation to ensure that their recordings remain vibrant and engaging.

Why and How Phase Cancellation Occurs

Phase cancellation occurs when sound waves from the same source are captured by multiple microphones at different times or positions. For example, if a microphone captures a sound wave at a certain moment while another microphone captures the same wave slightly later, the two signals may be out of phase due to the time delay. This can lead to destructive interference, where the peaks of one wave align with the troughs of another, resulting in cancellation of certain frequencies. Additionally, variations in distance from the sound source can cause phase discrepancies, as sound travels at a finite speed, leading to further phase issues in the mix. Further in this article, we will explain how to avoid or minimize phase cancellation.

Impact of Phase Cancellation on Sound Quality

Phase cancellation can have profound effects on the sound quality of audio recordings. It can lead to a phenomenon known as comb filtering, where certain frequencies are amplified while others are attenuated, creating an uneven frequency response. This can result in a thin or hollow sound that lacks depth and richness. Moreover, phase cancellation can compromise the spatial imaging of a mix, making it difficult for listeners to perceive the placement of instruments and vocals within the stereo field. Understanding these impacts is crucial for producers and engineers, as it allows them to make informed decisions regarding mic placement, mixing, and overall production techniques.

Effects on Frequency Response

Phase cancellation can significantly alter the frequency response of recorded audio. When certain frequencies are canceled out due to phase issues, the overall tonal balance of the mix can be affected. This can lead to a lack of presence in specific frequency ranges, resulting in a sound that feels incomplete or unbalanced. For instance, if the mid-range frequencies are canceled out, vocals may sound distant or muffled, while the high frequencies may become overly pronounced, leading to a harsh listening experience. To maintain a balanced frequency response, it is essential to address phase cancellation during the recording process.

Perceptual Consequences

The perceptual consequences of phase cancellation extend beyond technical measurements; they impact the listener’s overall experience. When phase issues are present, listeners may perceive a lack of coherence in the sound, making it difficult to identify the placement of individual instruments or vocals. This can lead to a less engaging listening experience, as the music may feel disjointed or cluttered. Furthermore, phase cancellation can create an unnatural resonance in certain frequencies, which can be distracting and detract from the emotional impact of the music. By understanding the perceptual consequences of phase cancellation, producers can strive to create a more immersive and enjoyable listening experience.

Identifying Phase Issues in Recordings

Identifying phase issues in recordings is essential for achieving high-quality audio. Various techniques can be employed to detect phase problems, allowing engineers to address them before finalizing the mix. By being proactive in identifying phase issues, sound engineers can ensure that their recordings maintain clarity and coherence, ultimately leading to a more polished final product.

Listening Techniques

One of the most effective methods for identifying phase issues is through careful listening. Engineers can employ several techniques during listening sessions to detect phase problems, such as:

• A/B Comparison: Switch between different microphone setups or tracks to hear how phase relationships change the sound.
• Soloing Instruments: Isolate individual tracks to better identify any frequency cancellations or imbalances.
• Use of Reference Tracks: Compare the mix to professionally produced tracks to identify discrepancies in sound quality.

By utilizing these techniques, sound engineers can develop a keen ear for recognizing phase issues and make necessary adjustments.

Visual Tools

In addition to listening techniques, visual tools can be invaluable for identifying phase cancellation. Engineers can use:

• Waveform Displays: Analyze the waveforms of different tracks to see how they align and where phase issues may occur.
• Phase Meters: Use dedicated phase correlation meters to visualize the phase relationship between tracks, helping to pinpoint problematic areas.
• Spectrograms: Examine the frequency content of recordings to identify any anomalies that may indicate phase cancellation.

Integrating these visual tools into their workflow allows engineers to obtain a more profound understanding of the phase relationships present in their recordings.

Techniques to Avoid or Fix Phase Cancellation

To minimize the risk of phase cancellation during recording sessions, sound engineers can implement various techniques and best practices. These strategies focus on microphone placement, monitoring, and an understanding of the acoustics of the recording environment.

Microphone Placement

Microphone placement is one of the most critical factors in avoiding phase cancellation. Engineers should consider the following tips:

• Distance: Maintain an appropriate distance between microphones to reduce the likelihood of phase issues.
• Angle: Experiment with angles to find optimal positioning that minimizes phase discrepancies.
• Use of Directional Microphones: Employ directional microphones to focus on the desired sound source while rejecting ambient noise.

Careful consideration of microphone placement is essential. By doing so, you can greatly minimize the chances of phase cancellation and improve the overall quality of your recordings.

Stereo Miking Techniques

When recording in stereo, it’s essential to use best practices to minimize phase issues that can detract from the overall sound quality. Employing stereo microphone techniques such as the Spaced Pair (also known as A/B) where two microphones spaced apart allows engineers to capture a natural stereo image by positioning two microphones at equal distances from the sound source, which helps maintain phase alignment.

Alternatively, utilizing the XY Configuration involves placing two microphones at a 90-degree angle to one another, which not only enhances phase coherency but also contributes to a more focused stereo field.

By thoughtfully implementing these stereo miking techniques, engineers can achieve a richer and more immersive audio experience, ensuring that the final mix is vibrant and engaging for listeners.

Distance and Angle Considerations

The distance and angle of microphones can greatly influence phase cancellation. Key considerations include:

• Proximity Effect: Be aware of the proximity effect, where closer microphone placement can increase bass response but may also introduce phase issues.
• Angle Variation: Adjusting the angle of microphones can help capture the sound source more effectively while reducing phase discrepancies.

By carefully considering these factors, engineers can optimize their recordings and reduce the risk of phase cancellation.

Monitoring Techniques

Effective monitoring techniques can help engineers identify and avoid phase cancellation during recording sessions. For Real-time Monitoring it’s important to studio headphones or monitors to listen for phase issues as they occur, allowing for immediate adjustments.

An advanced technique would be Phase Correlation Monitoring. By using phase correlation meters during monitoring you can visualize phase relationships and detect potential problems. Level Adjustments play an important role as well. Continuously adjust levels during recording to maintain phase coherence and avoid excessive cancellation. By implementing these monitoring techniques, you can enhance your ability to detect and address phase issues in real-time.

Using Phase Correlation Meters

As mentioned before, phase correlation meters are valuable tools for monitoring phase relationships between tracks. To use them effectively:

• Interpret Readings: Understand the correlation readings, where a value close to +1 indicates good phase coherence, while values approaching -1 signal potential issues.
• Make Adjustments: Use the meter readings to guide adjustments in mic placement, levels, and panning tracks to maintain phase integrity.

  By leveraging phase correlation meters, engineers can proactively manage phase relationships and avoid cancellations.

Adjusting Levels and Panning

Adjusting levels and panning can help maintain phase coherence in a mix. This ensures that each element of the audio is represented clearly, allowing for a more dynamic and engaging sound that captures the listener’s attention.

For this you can Balance Levels to ensure that the levels of each track are balanced to prevent any one track from dominating and causing phase issues. Use Panning Techniques strategically to create a sense of space in the mix while avoiding phase cancellation.

By making thoughtful adjustments to levels and panning, engineers can create a more cohesive and balanced mix, minimizing the impact of phase cancellation.

Conclusion

In conclusion, understanding and addressing phase cancellation is crucial for achieving high-quality audio recordings. By grasping the underlying principles of phase cancellation, sound engineers can implement effective techniques for identifying and avoiding phase issues. From careful microphone placement to utilizing visual tools and monitoring techniques, there are numerous strategies available to maintain phase coherence during the recording process. By prioritizing phase integrity, producers can create cleaner, more balanced mixes that engage listeners and enhance the overall listening experience.
